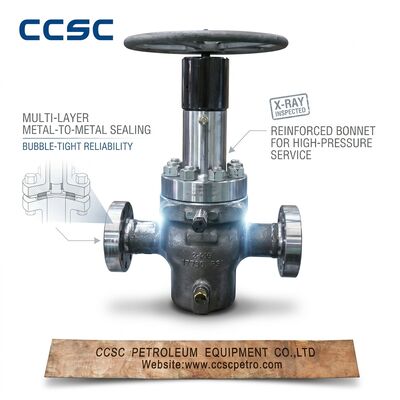

Petrochemical Welded Body High Pressure Gate Valve Operating Between 75°F and 350°F Suitable for Industrial Applications

Product Description:

The High Pressure Gate Valve is a robust and reliable valve designed to provide exceptional performance in demanding industrial applications. Engineered to handle high-pressure environments, this Gate Valve ensures precise flow control and tight sealing, making it an essential component in various piping systems where safety and efficiency are paramount.

One of the standout features of this High Pressure Gate Valve is its sealing material, which is made from PTFE (Polytetrafluoroethylene). PTFE is renowned for its excellent chemical resistance, low friction, and ability to maintain a tight seal under a wide range of operating conditions. This makes the valve particularly suited for applications involving corrosive fluids or where leak prevention is critical. The use of PTFE as the seal material significantly enhances the valve’s durability and reliability, ensuring long service life and minimal maintenance requirements.

The valve is designed to operate within a pressure range classified as Psl 1-4, which indicates its capability to withstand various pressure levels while maintaining its integrity and performance. This makes the High Pressure Gate Valve versatile enough to be used in multiple industrial sectors, including oil and gas, petrochemical, power generation, and water treatment facilities. Its ability to handle high pressures safely and effectively is a testament to its superior engineering and quality construction.

The material class for this Gate Valve ranges from AA to HH, highlighting the extensive options available to meet different application needs. These material classes correspond to specific standards that define the valve’s mechanical properties, corrosion resistance, and suitability for different temperature and pressure conditions. By offering a broad spectrum of material classes, the High Pressure Gate Valve can be customized to suit particular environmental requirements, ensuring optimal performance in diverse operational settings.

Size is another critical attribute of this Gate Valve, with a dimension of 2 9/16 inches. This size is ideal for a variety of piping systems, providing a balance between compact design and sufficient flow capacity. The valve’s size makes it adaptable for use in both new installations and retrofitting projects, where space constraints and compatibility are important considerations.

Operating efficiently across a working temperature range from 75°F to 350°F, the High Pressure Gate Valve is capable of performing in moderate to high-temperature applications. This temperature range covers many industrial processes, ensuring that the valve maintains its sealing integrity and mechanical strength without degradation. The valve’s ability to function reliably within this temperature spectrum adds to its versatility and makes it suitable for a wide array of fluid control tasks.

In summary, the High Pressure Gate Valve is an indispensable component for industries requiring precise flow regulation under high-pressure conditions. Its PTFE seal material guarantees excellent chemical resistance and leak-proof performance, while the Psl 1-4 pressure rating ensures it can handle varying pressure demands with confidence. The availability of multiple material classes from AA to HH allows for customization to specific operational environments, and its 2 9/16-inch size provides compatibility with many piping systems. With a working temperature range of 75°F to 350°F, this Gate Valve is well-suited for diverse industrial applications. Whether used in oil and gas pipelines, chemical processing plants, or power generation facilities, the High Pressure Gate Valve delivers dependable performance, safety, and longevity, making it a valuable investment for any high-pressure fluid control system.

Features:

• Product Name: High Pressure Gate Valve
• Body Type: Welded Body for enhanced durability
• Size: 2 9/16"
• Connection Type: Flanged connection for secure installation
• Seal Material: PTFE ensuring reliable sealing performance
• Testing Standard: Complies with API 598 for quality assurance
• Designed specifically as a High Pressure Gate Valve for demanding applications
• Provides robust and efficient flow control as a Gate Valve
• Ideal for use in systems requiring a High Pressure Gate Valve

Technical Parameters:

Applications:

The High Pressure Gate Valve is an essential component widely used in various industrial applications where controlling the flow of fluids under high pressure is critical. Designed with a full bore flow characteristic, this Gate Valve ensures minimal pressure drop and allows for unobstructed flow, making it ideal for systems that require efficient and reliable fluid control. The valve is available in sizes up to 2 9/16", accommodating a range of pipeline dimensions commonly found in high-pressure environments.

One of the primary application occasions for the High Pressure Gate Valve is in the oil and gas industry. Here, it is utilized to manage the flow of crude oil, natural gas, and other hydrocarbons in both upstream and downstream operations. Its ability to handle pressure levels classified under Psl 1-4 makes it suitable for critical pipelines and processing units where safety and performance are paramount. The Gate Valve's robust construction and full bore design help prevent pressure loss and ensure the integrity of the pipeline system.

In petrochemical plants, the High Pressure Gate Valve plays a vital role in controlling the flow of various chemicals and fluids during manufacturing processes. The valve's precise operation, whether manual or via an electric actuator, allows for flexible control in different scenarios, from routine maintenance shutdowns to emergency isolation. The manual operation option provides simplicity and reliability, while the electric actuator offers automation capabilities for remote or difficult-to-access installations.

Additionally, the High Pressure Gate Valve is suitable for other industrial scenarios where high-pressure fluid control is required, such as power generation, water treatment, and chemical processing. Its full bore design ensures that the valve can handle abrasive or viscous fluids without clogging or excessive wear, prolonging service life and reducing maintenance costs. The availability of both manual and electric actuator operations means that the valve can be adapted to various control systems and operational requirements.

Overall, the High Pressure Gate Valve is a versatile and reliable solution for controlling high-pressure fluid flow in demanding industrial environments. Its combination of full bore flow characteristic, multiple operation modes, and compliance with Psl 1-4 standards makes it an indispensable component in oil & gas and petrochemical applications, as well as other high-pressure scenarios.

Customization:

Our High Pressure Gate Valve product offers full bore flow characteristics, ensuring minimal pressure drop and efficient fluid control in your system. Designed according to API 598 testing standards, this High Pressure Gate Valve guarantees reliability and durability under rigorous conditions. With a size of 2 9/16" and a temperature range from -29°C to 425°C, it is well-suited for demanding applications in the oil & gas and petrochemical industries. Customize your Gate Valve to meet specific operational requirements and enhance performance in critical environments.

Support and Services:

Our High Pressure Gate Valve product is designed to provide reliable performance under extreme pressure conditions. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, maintenance advice, and operational best practices to ensure optimal valve functionality and longevity.

We offer comprehensive services including valve inspection, repair, and refurbishment to maintain the integrity and performance of your high pressure gate valves. Customized training sessions are also available to help your personnel gain in-depth knowledge of valve operation and safety protocols.

Technical documentation, including detailed manuals, datasheets, and installation guides, are provided to support your technical teams. We are committed to delivering prompt and effective support to minimize downtime and enhance system reliability.

For any complex technical inquiries or service requests, our support specialists employ advanced diagnostic tools and field service capabilities to resolve issues efficiently and ensure your high pressure gate valve operates at peak performance.

FAQ:

Q1: What materials are used to manufacture the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is typically made from high-quality stainless steel or carbon steel, ensuring durability and resistance to corrosion under high pressure conditions.

Q2: What is the maximum pressure rating for this gate valve?

A2: This valve is designed to operate efficiently at pressures up to 6000 PSI, making it suitable for demanding industrial applications.

Q3: What sizes are available for the High Pressure Gate Valve?

A3: The valve is available in a range of sizes from 1/2 inch to 12 inches to accommodate various pipeline requirements.

Q4: Can the High Pressure Gate Valve be used for both liquid and gas applications?

A4: Yes, the valve is designed to handle both liquid and gas media, providing reliable shut-off performance in diverse systems.

Q5: How is the valve operated?

A5: The High Pressure Gate Valve is operated manually using a handwheel, allowing precise control over the flow in the pipeline.
